TX7 Intelligent Fire Alarm System

Home TX7 Intelligent Fire Alarm System TX3404AE LCD Repeater Panel

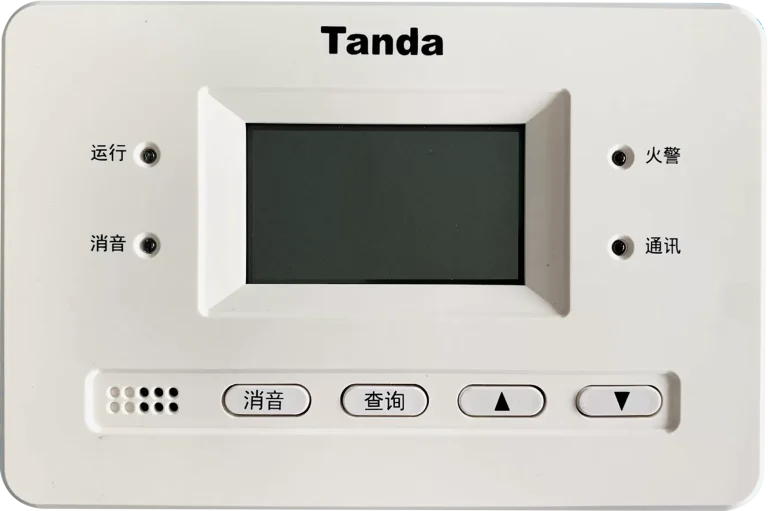

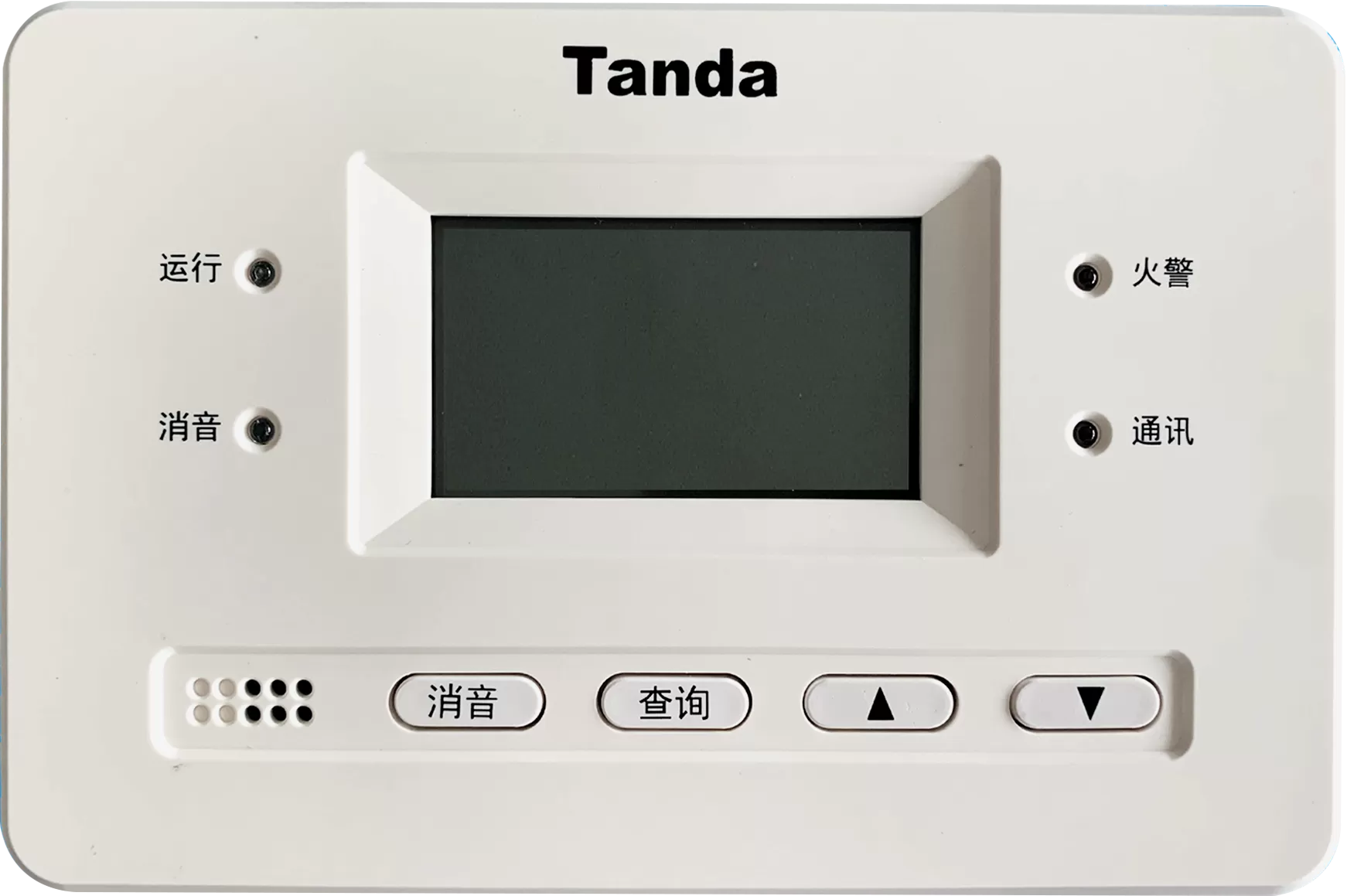

TX3404AE LCD Repeater Panel

Two-bus, non-polarity
It can send sound-light alarm signal with alarm controlle
Provided with Mute, Up, Down and Inquiry functions
Write addresses by encoderpanel

Get A Quote

Description
Specifications
Cases
FAQ
Related Products

Technical Specifications

Operating Voltage	Bus voltage: 24V Allowing range: 15V–28V
Operating Current	Bus monitoring current: ≤3mA Bus alarm current: ≤6mA
Communication Distance	＜1500m
20 fire display panels can be provided for each circuit at most
Operating Environment	Temperature: -10°C ~ +55°C Relative humidity: ≤95%RH (40±2°C), without condensation
Color	Ivory white
Weight	About 300g
Outline Dimension (L×W×H)	160mm × 106mm × 32mm
