TXC7 & DET Series Conventional Fire Alarm Systemt

Home TXC7 & DET Series Conventional Fire Alarm Systemt TXC7141 Conventional Manual Ca...

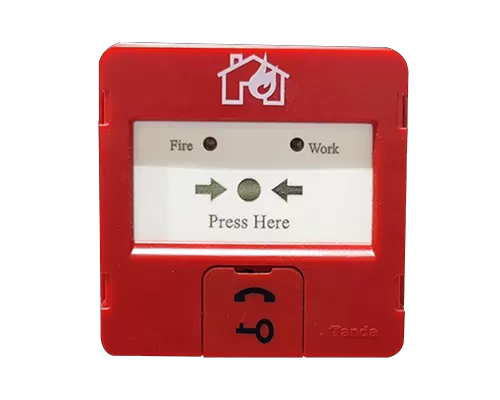

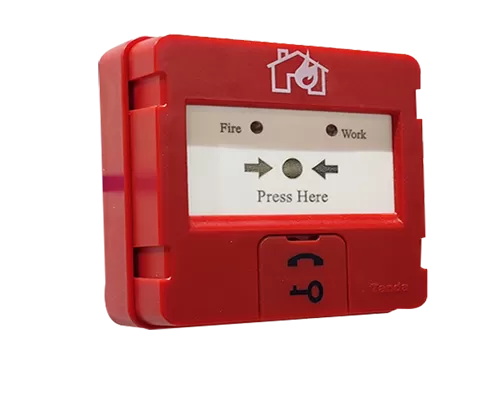

TXC7141 Conventional Manual Call Point

Reliable and stable hardware circuit, which is not affected by electromagnetic interference
After plastic dome pressed, a special key is used to reset it manually
After plastic dome pressed, manual button provides separate output contact to control other external equipment directly.
Plug-type structure is installed easily and reliably

Get A Quote

Download Resources

Download Our Product Files

Download Brochure Download Datasheet

Description
Specifications
Cases
FAQ
Related Products

Technical Specifications

Operating Voltage	24VDC (Range: 16~28VDC)
Operating Current	Normal: ≤20μA, Alarm: ≤30mA
Starting Parts Type	Reusable
Start Type	Press plastic dome manually
Wiring	Two-wire system, non-polarized
Temperature	-20°C ~ 55°C
Mounting Hole Pitch	60mm
Humidity	≤95%, Non-condensing
Dimension	90.0mm × 90.0mm × 34.0mm (with base)
Material & Color	Plastic, Red
Weight	90g (with base)
