Hybrid Home Security System

Home Hybrid Home Security System TW3232 Wireless Fire Sound and...

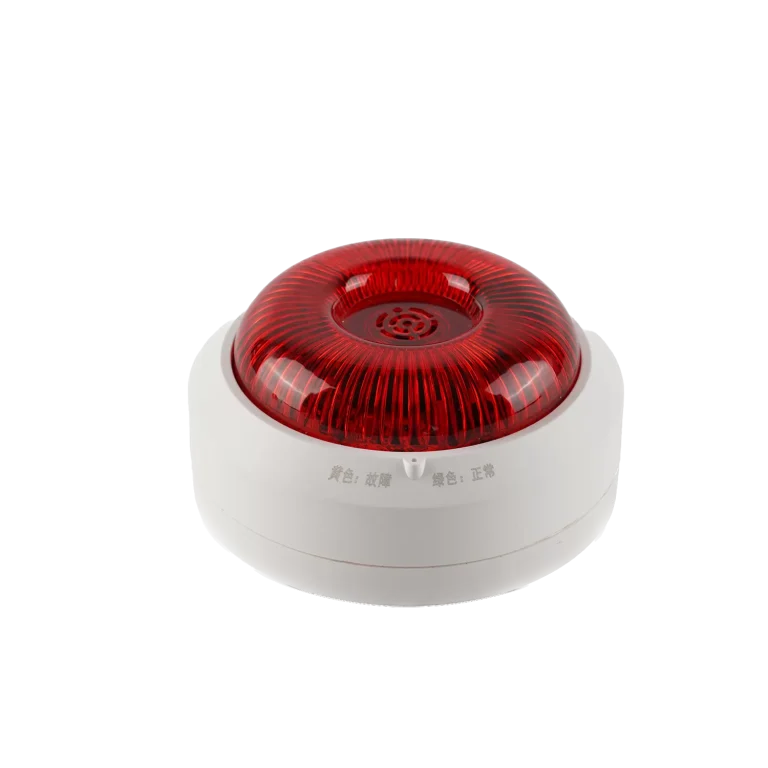

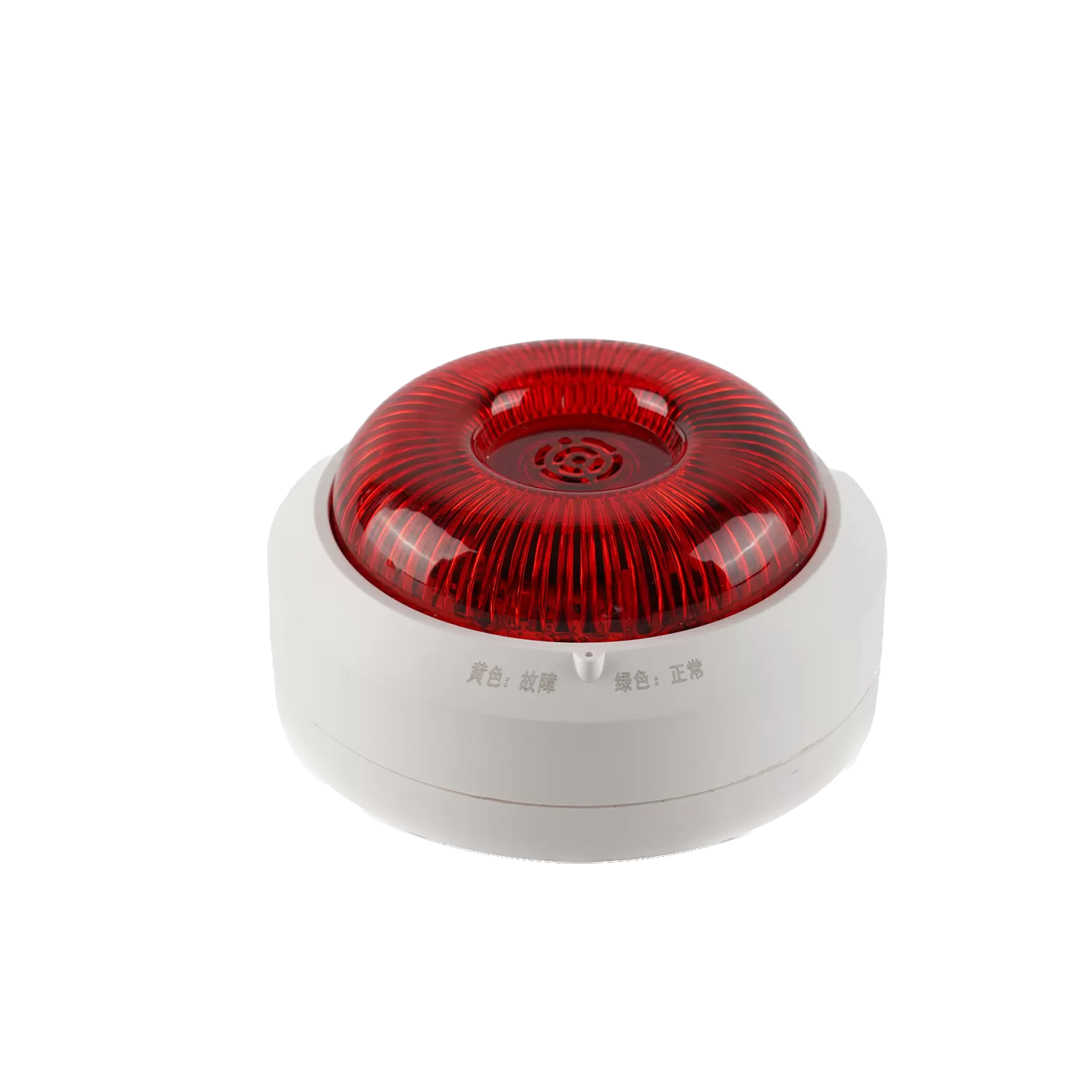

TW3232 Wireless Fire Sound and Light Alarm

Adopt FosLink wireless communication technology, without wiring
One unique ID is built in, and it can network with wireless trainsmission module and fire alarm control panel
Using multiple high-brightness LEDs as light sources, eye-catching display, long life and low power consumption
With sound gradient function, it can be used in a wide range of places
It is provided with battery under-voltage reminding fundtion

Get A Quote

Download Resources

Download Our Product Files

Download Brochure Download Datasheet

Description
Specifications
Cases
FAQ
Related Products

Technical Specifications

Operating Voltage	DC 3.0V
Operating Current	Monitoring current: <40μA Alarm current: <40mA
Flash Frequency	1.1 ~ 1.8Hz
Pitch Cycle	2 ~ 4s
RF Frequency	470 ~ 510MHz
Tx Power	≤17dBm
Max Communication Distance	300m in open space
Ingress Protection	IP30
Operating Environment	Temperature: 0°C ~ +55°C Relative Humidity: ≤95%RH, without condensation
Color	White (astigmatism section is red)
Weight	165g (including batteries)
Outline Dimension	Φ100mm × H48mm (including base)
