Intelligent Fire Alarm Control Panel TX7004

EN54-2:1997+A1:2006;EN54-4:1997+A1:2002+A2:2006 Certified
Advance microprocessor technology with large memory capacity fire detection panel, available in a 1, 2 or 4 loop assembly
Enhance user interface combining wide LCD Touch screen, color display and keypad access
Support real time visual algorithm
Enhance false alarm prevention
Keypad and PC programming
Built-in 4-in-1Multiple interface protocol such as USB/Ethernet/Can Bus/ Serial RS232 & 485
Support Loop Powered devices for extra saving on cablecost
Built-In Printer and 160 LED Zones Indicators

Get A Quote

Download Resources

Download Our Product Files

Commissioning Advantage

Approvals	LPCB / CE-CPR
Input Voltage	230VAC +10%~15%, 50Hz
Network Panel to Panel	512 Panels – Single Ring (Ideal)
Communication Card	USB, CanBus, RS485 / RS232 Serial, Ethernet (Built-in to TX7004, Optional to TX7004-1/2)
Protocol / Addressing	T&A, Value range from 1 to 254

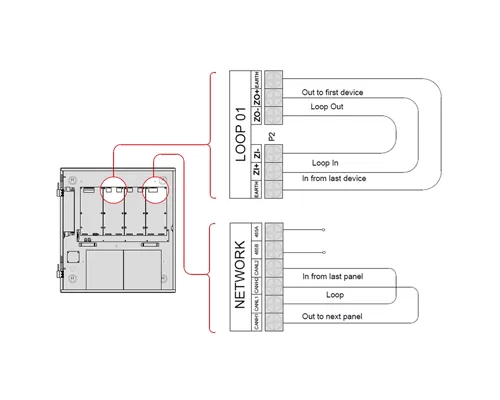

No. of Loop	1, 2, 4, 6 Loop (6 Loop standalone)
Protection	Built-in 4kV Surge protection

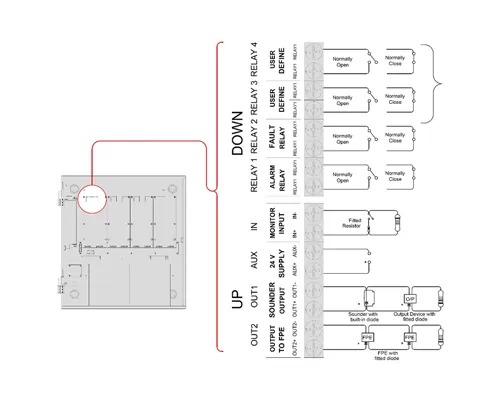

Programmable Relays	4 circuits: Normally Open/Close
Programmable Input	1 Circuit: Power limited 24VDC
Programmable Aux Power	Limited 19–28VDC
Fixed Outputs	2 Circuits: Power limited 18–28VDC
Indicator	24 LED Status / 160 Zone Indicators
Display	7" TFT Touch Screen
Keypad	5 Brigade buttons and Programming Keypad
Material / Color	Flat sheet Metal / with outer glass door
Dimension (H×W×D)	530 × 490 × 135 mm
Weight	16.70 kg
Temperature	-5°C ~ +40°C
Humidity	0 to 95% RH, Non-condensing
