TN7 Fire Telephone System

Home TN7 Fire Telephone System TN7300 Addressable Fire Teleph...

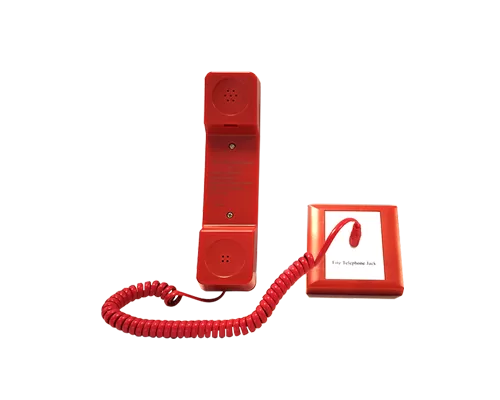

TN7300 Addressable Fire Telephone Jack Socket

GB16806-2006 Complance
Non-polarized two-wire for communication and talk, cost effective for wiring
Using electronic addressing
TN7301 Jack Socket can be connected
The telephone line output port has the feature of openand short circuits checking

Get A Quote

Download Resources

Download Our Product Files

Download Brochure Download Datasheet

Description
Specifications
Cases
FAQ
Related Products

Technical Specifications

Operating Voltage	24VDC (Telephone bus 18V–28V)
Operating Current	Standby Current ≤600μA Talk Current ≤25mA
Load Capacity	Connecting up to 150 TN7301 Jack Sockets
Programming	Electronically addressing for one code
Wiring	Connect with the fire telephone control panel through non-polarized two-wire Connect and with TN7301 Jack Socket through non-polarized telephone line
End-of-line Resistor	24kΩ (20kΩ–25kΩ)
Colour	Color of the Enclosure: white for the bottom and red for the front panel
Dimension (L×W×H)	86.6 × 86.6 × 56.3 mm
Weight	65g
Operating Temperature	-10°C to +55°C
Humidity	0 to 95% RH, Non-condensing
