Hybrid Home Security System

Home Hybrid Home Security System TR3106A Household Combustible ...

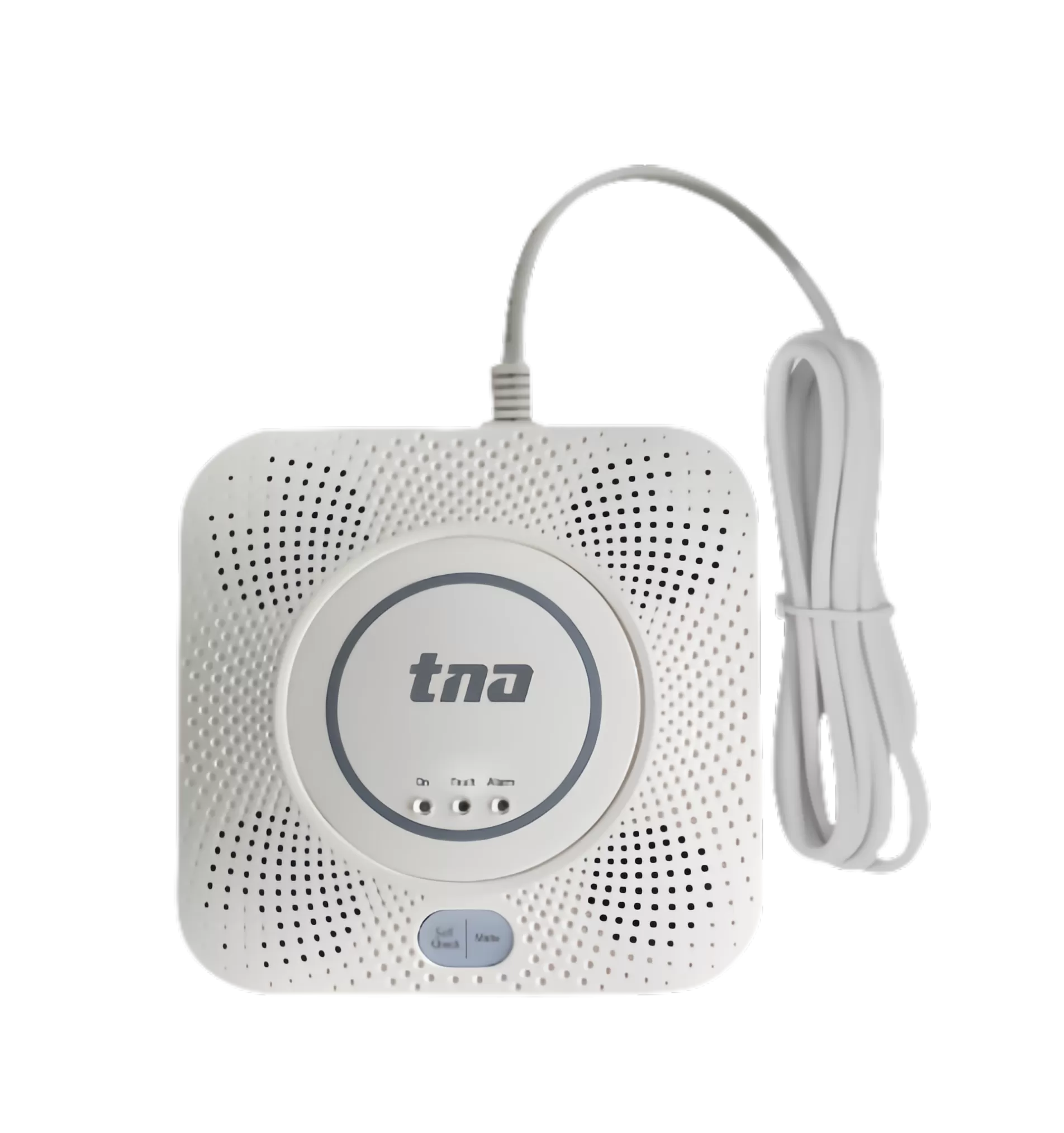

TR3106A Household Combustible Gas Detector

With sound and light alarm function
Sensor failure and life automatic detection
Historical data recording and reading function
Wall-mounted installation, easy to install and easy to use

Get A Quote

Download Resources

Download Our Product Files

Download Brochure Download Datasheet

Description
Specifications
Cases
FAQ
Related Products

Technical Specifications

Working Voltage	AC220V 50Hz
Power Consumption	Normal monitoring status: ≤2.0W Alarm status: ≤2.5W
Output Modes	DC 12V (pulse output, with a load capacity current ≤140mA), quantity: 1 set Switching output (contact capacity: DC30V/1A), quantity: 1 set
Applicable Gas	Methane
Measurement Range	0–20% LEL
Alarm Setting Value	10% LEL
Sensor Lifespan	5 years (typical value)
Power-On Preheating Time	20 minutes
Wireless Communication Frequency	470MHz ~ 510MHz
Transmit Power	≤17dBm
Usage Environment Temperature	-10°C to +55°C
Relative Humidity	≤95% RH, no condensation
Color	White
Dimensions	85mm × 85mm × 35mm (including base)
Weight	145g
