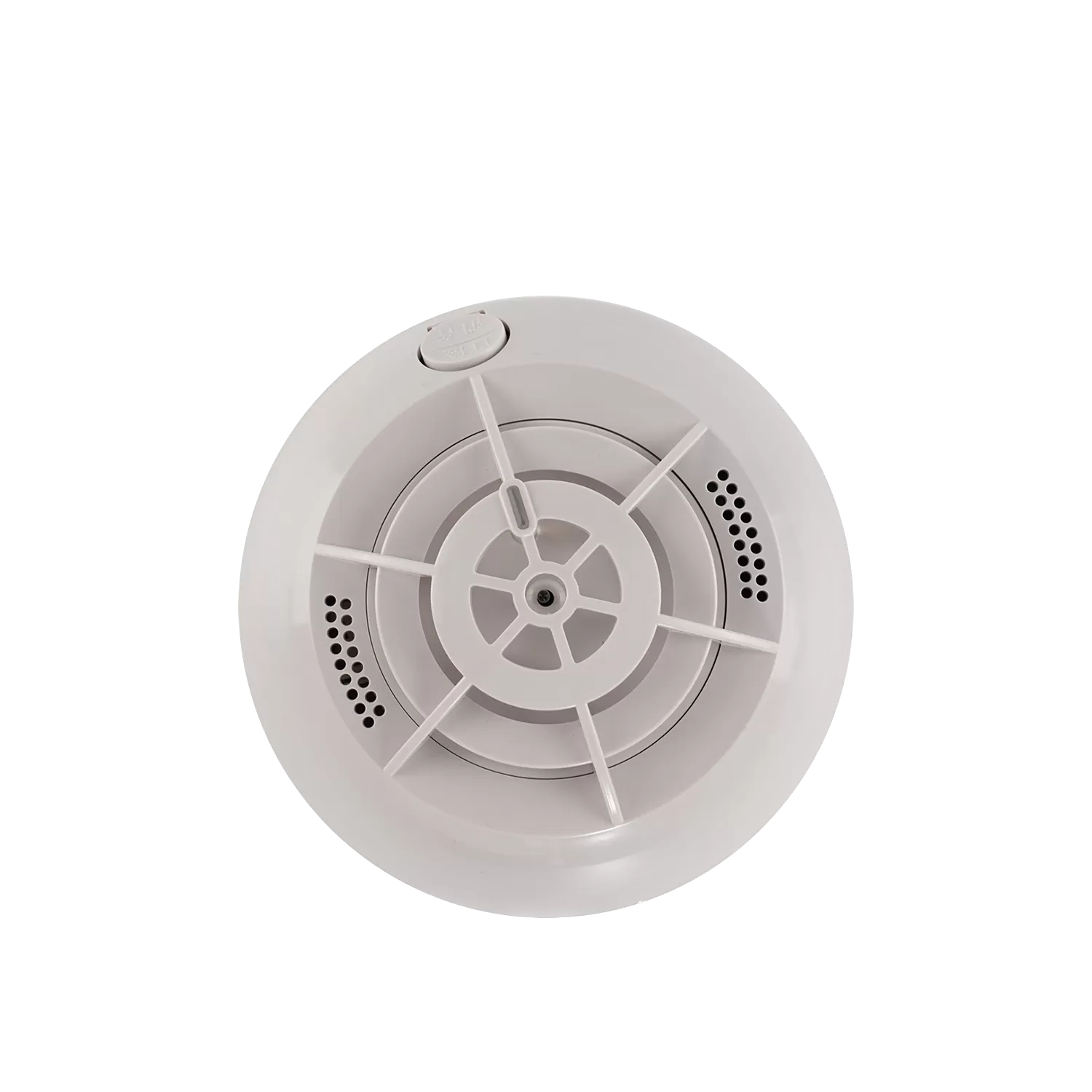

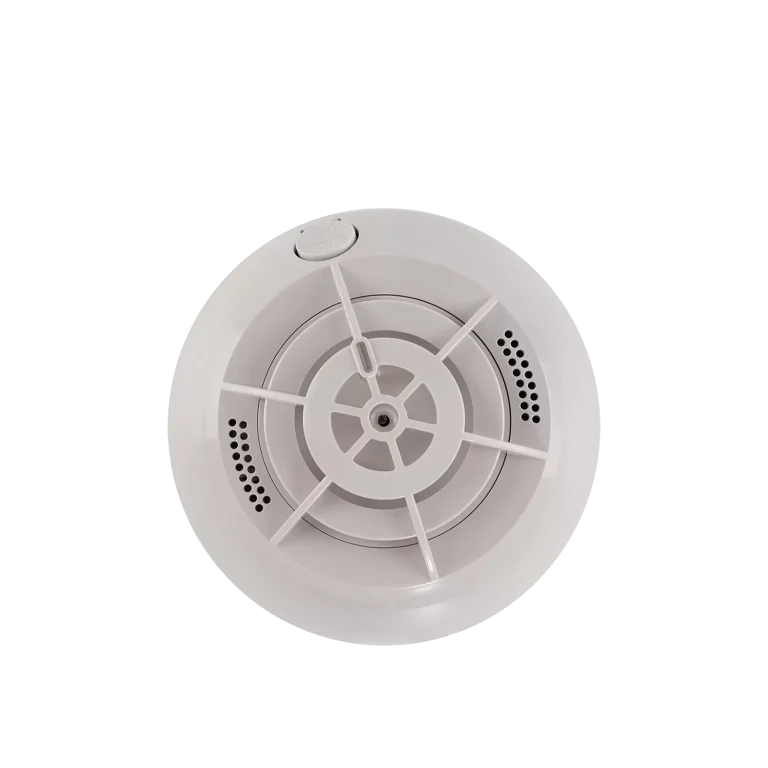

TX3180 Independent Thermal Fire Detection Alarm

Powered by external batteries
360° status indication
Low monitoring current and alarm current
It has self-check function, with sound-light indication
It has battery under-voltage prompt function
It has the function of constant temperature and diffferential temperature detection
LoRa wireless communication technology is used, without wiring

Technical Specifications

Operating Voltage	DC3V (two batteries, 1.5V FR14505/AA)
Operating Current	Monitoring current: <40μA Alarm current: <40mA
Alarm Type	AR
Alarm Sound Pressure Level	The sound changes from low to high and is 45dB ~ 75dB (A-weighted) at 3m right ahead
Fault Status	Yellow indicator light flashes once every 50s and the buzzer sends a short alarm
Alarm Status	Red indicator light is normally on and the buzzer sends an alarm
Operating Environment	Temperature: -10°C ~ +50°C Relative Humidity: ≤95% RH, without condensation
Color	Pearl white
Installation Type	Screwed into the base
Weight	About 125g (with base and battery)
Outline Dimension	Diameter: 100.3mm Height: 51mm (including base)
