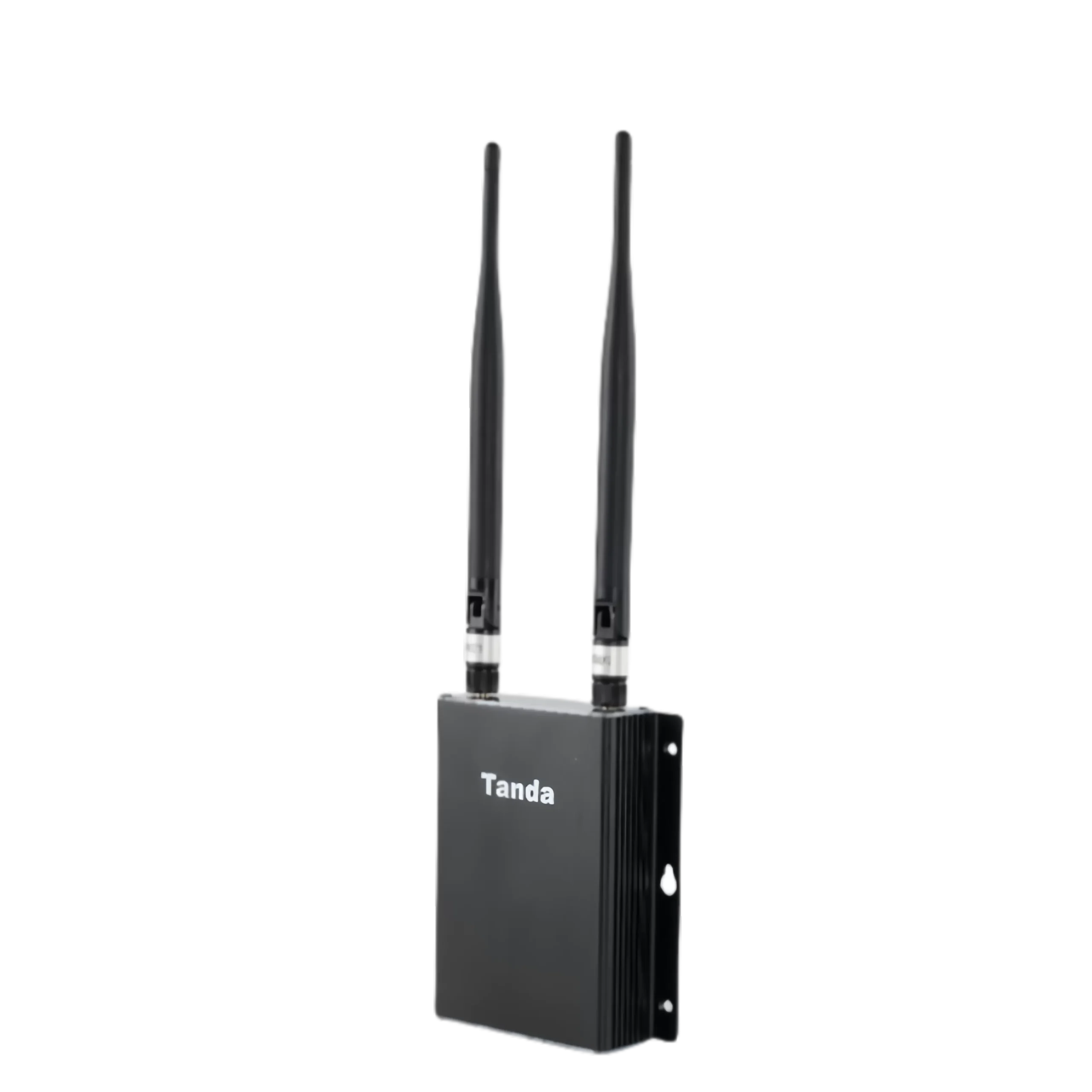

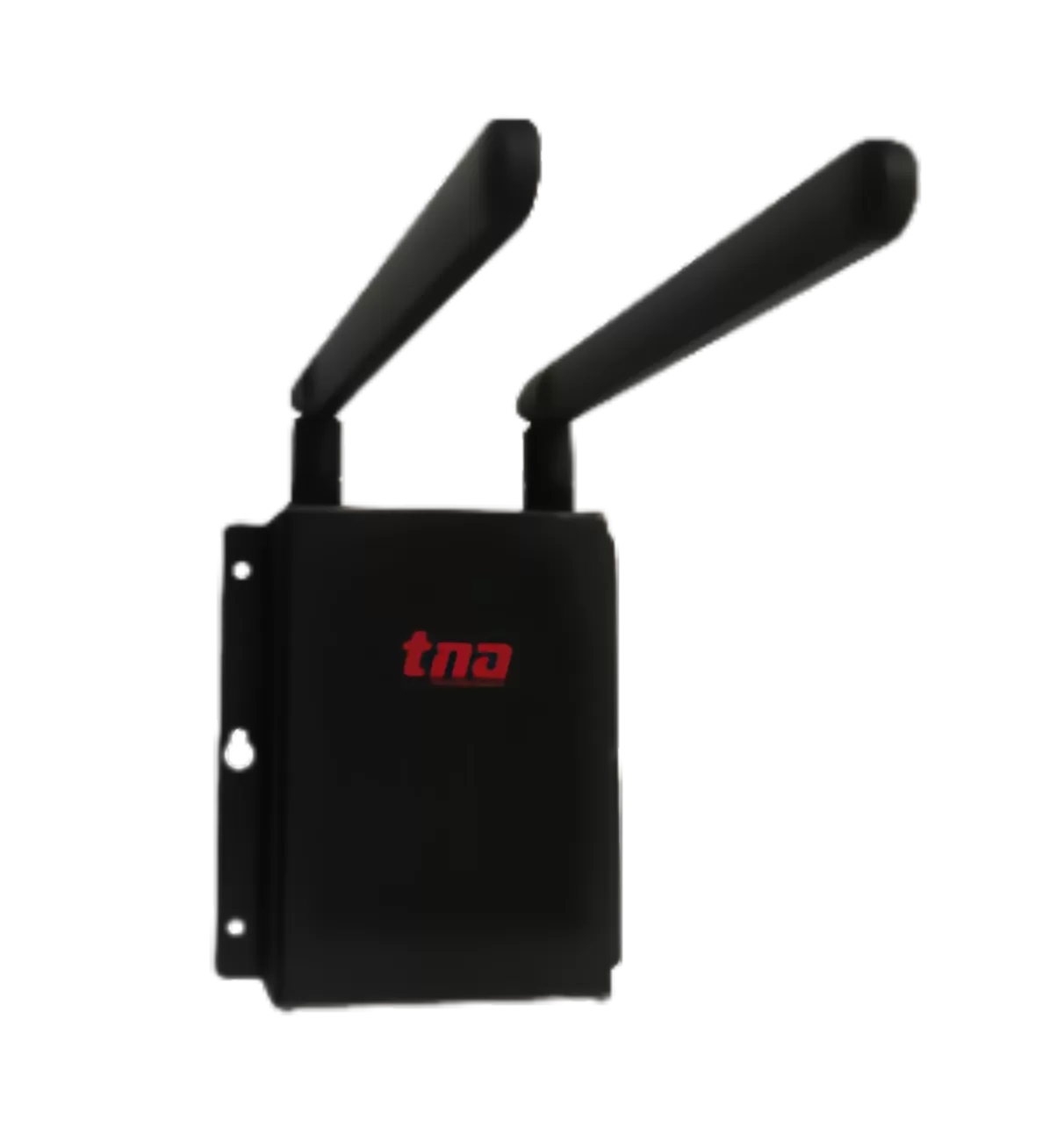

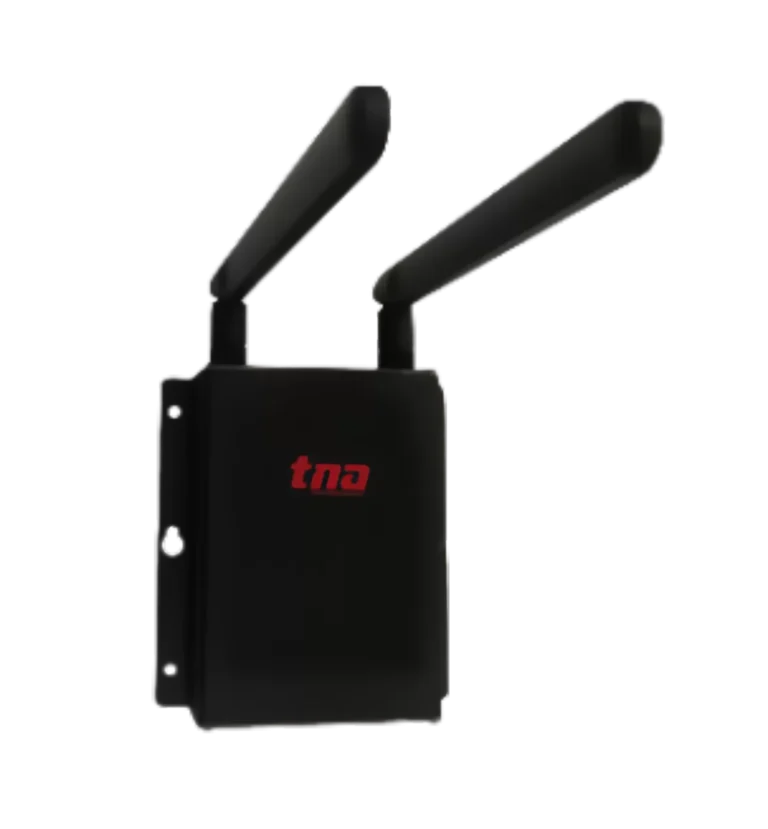

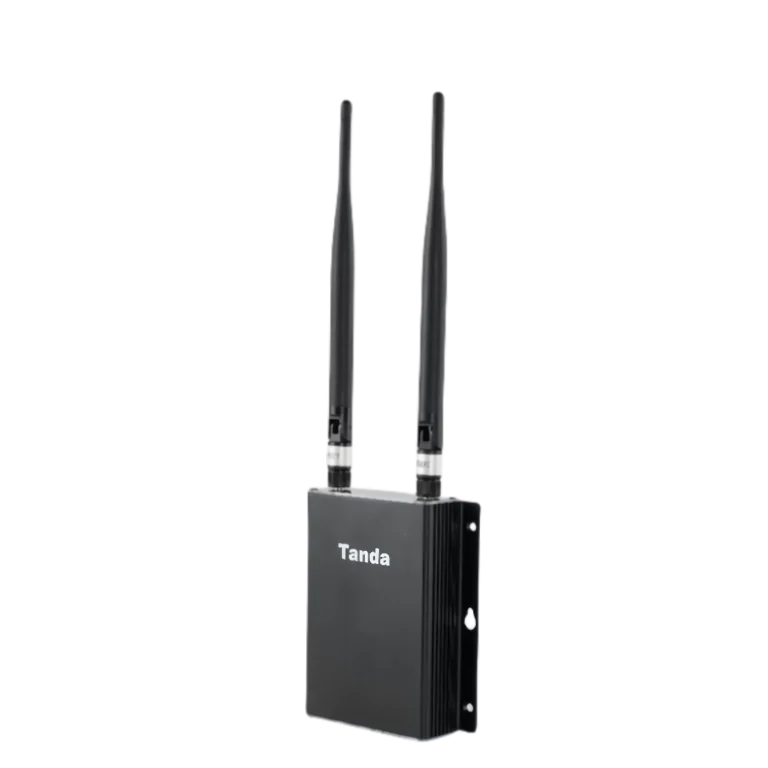

Home Hybrid Home Security System TX3231 Wireless Relay Module

TX3231 Wireless Relay Module

Get A Quote

Download Resources

Download Our Product Files

Technical Specifications

Operating Voltage	DC15V ~ DC26V
Maximum Current	<250mA
Indication and Operation	The module is provided with three status indicators and one reset key
Number of Front-End Equipment	200
Wireless Communication Frequency	470 ~ 510MHz
Wireless Transmitting Power	17dBm
Maximum Communication Distance	1500m in open air
Mounting Type	Wall-mounted type
Operating Environment	Temperature: -10°C ~ +42°C Relative Humidity: ≤95% RH, No condensation
Outline Dimension	118mm × 105mm × 28mm (excluding antenna)
Housing Color	Black
Weight	About 180g
