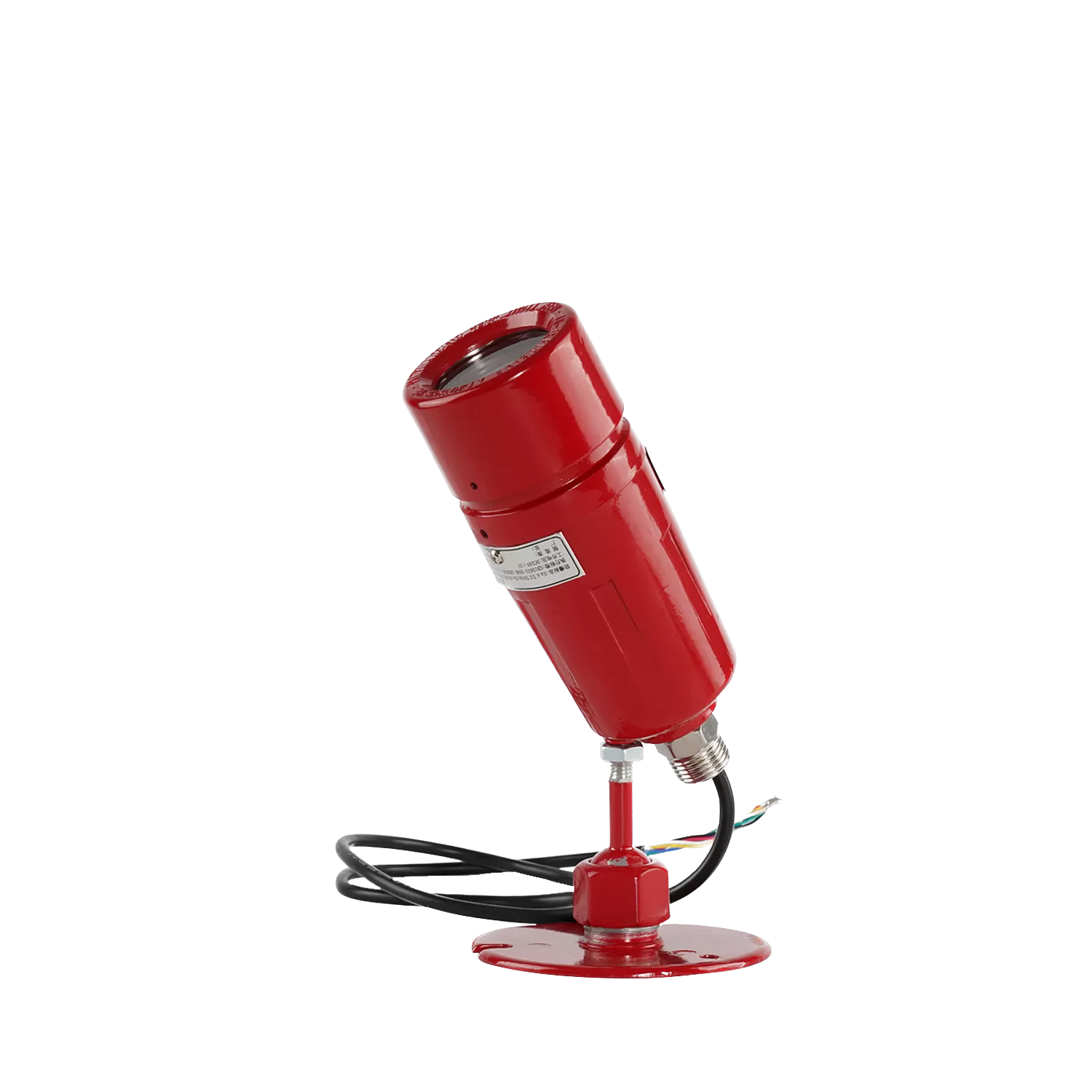

TX3H02 Point-type Infrared Flame Detector

Technical Specifications

Operating Voltage	DC 24V ± 5V
Monitoring Current	25mA ± 3mA
Alarm Current	35mA ± 5mA
Sensitivity	Response at 1m–40m (flame height 0.1m–1.3m, shaking)
Monitoring Range	Directly face the detector, cone of sight is about 90°
Operating Temperature	-40°C ~ +85°C
Humidity	≤98% (45±2)
Outgoing Line Interface	4" (φ20mm) nut, explosion-proof hose
Weight	0.7kg
Outline Dimension	φ60 × 170mm
Protection Level	IP66
