Hybrid Home Security System

Home Hybrid Home Security System TX6934 Handheld Programmer

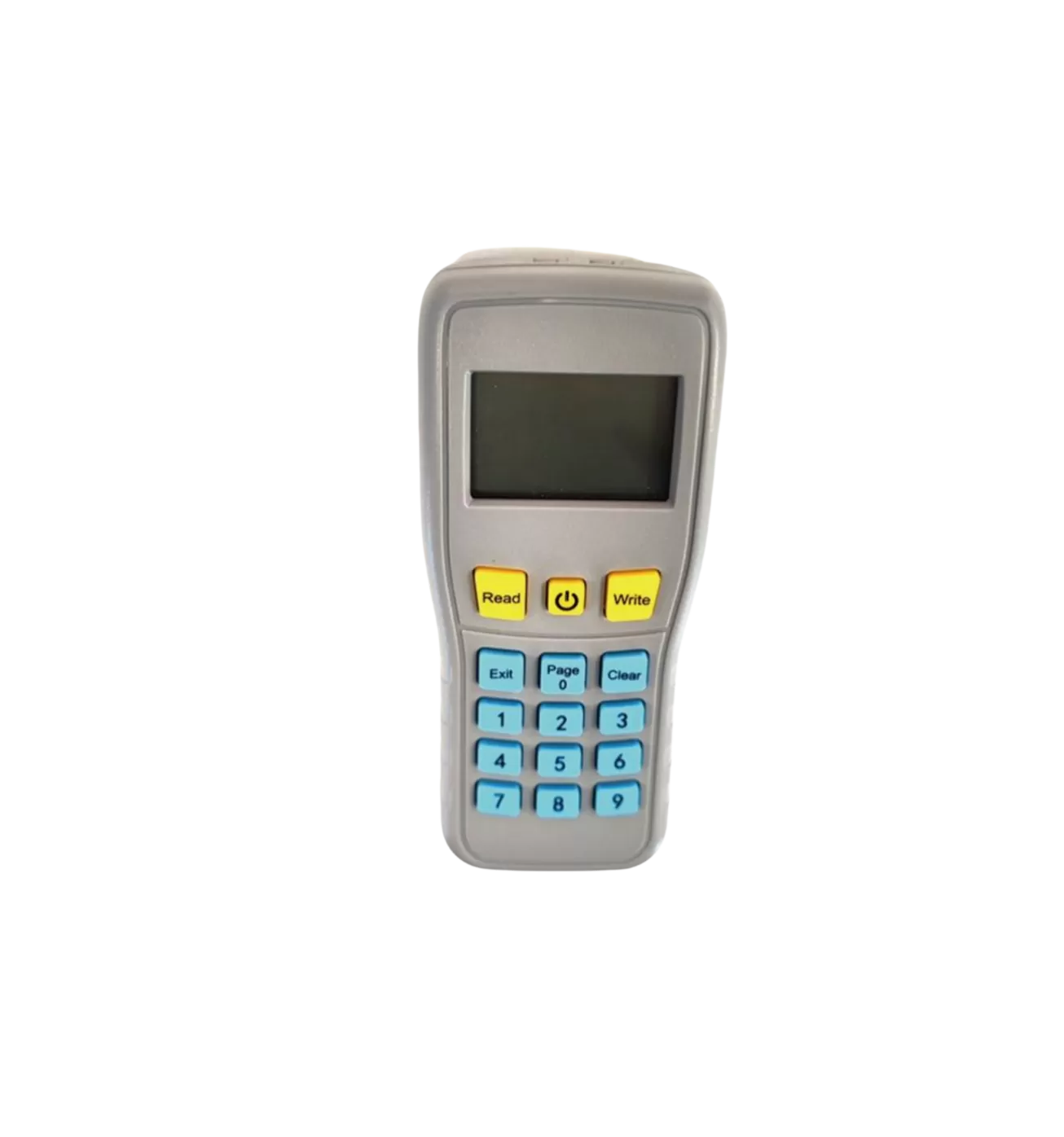

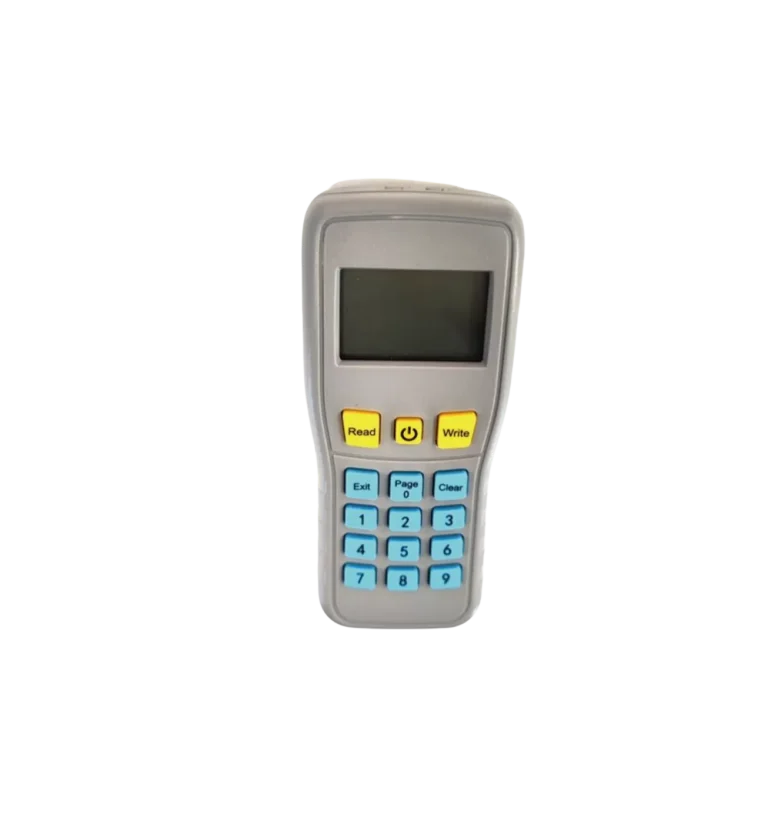

TX6934 Handheld Programmer

The device adopts a hand-held structure, which is small in size and easy to carry
Can read and write configuration information of LoRa firont-end devices, assisting in the effective installation of front-end devices
Black and white LCD display, adjustable screen backlight brightness, easy operation
Automatic shutdown function, which increases battery life and reduces battery replacements times

Get A Quote

Download Resources

Download Our Product Files

Download Brochure Download Datasheet

Description
Specifications
Cases
FAQ
Related Products

Technical Specifications

Power Supply	2 AA batteries (one 1.5V)
Working Current	<15mA
Standby Current	<1μA
Wireless Communication Standard	LoRa
Wireless Communication Frequency	470 ~ 510MHz
Wireless Transmission Power	<17dBm
Maximum Communication Distance	1000m in open space
Operating Environment	Temperature: -10°C ~ +55°C Relative humidity: ≤95%RH, no condensation
Size	60 × 30 × 135 mm
