TX7 Intelligent Fire Alarm System

Home TX7 Intelligent Fire Alarm System TX7120 Intelligent Multi- sens...

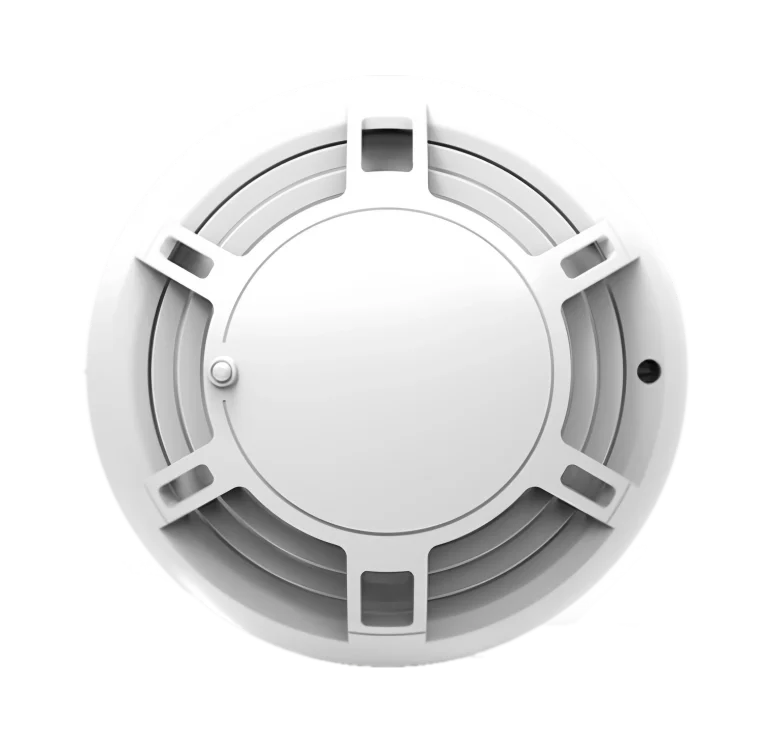

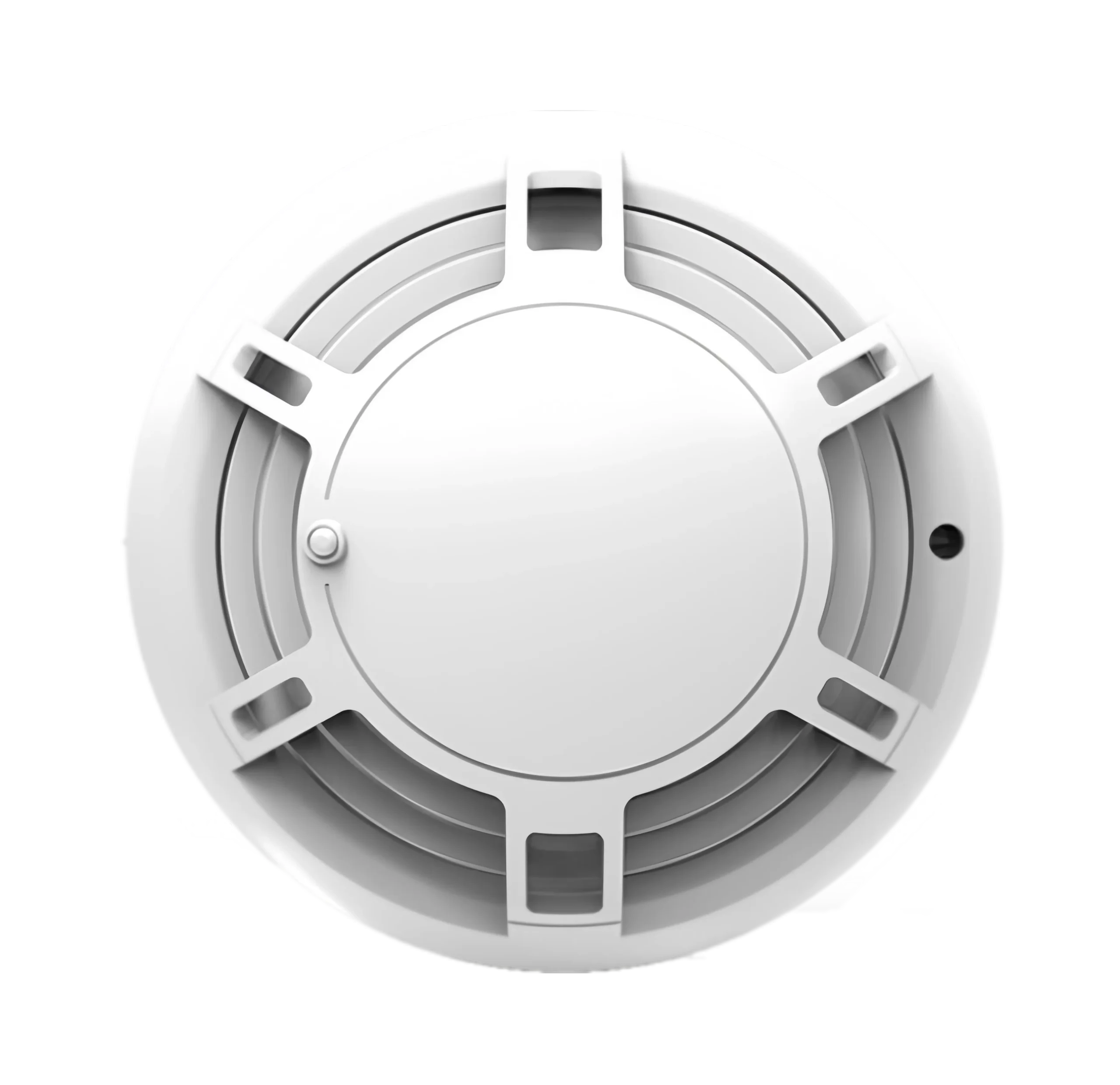

TX7120 Intelligent Multi- sensor Fire Detector

EN54-29 Compliance
Smoke and Heat analogue sensor and digital com munication
Using microprocessor technology with memorycapacityupto 10 events
Analogue sending and digital addressing
Provide real time algorithm to the control panel
Smart linear drift compensation
360-degree visual indicator
Onsite Adjustable Parameter
Removable chamber against dust and small insect
Ancillary remote indicator output

Get A Quote

Download Resources

Download Our Product Files

Download Brochure Download Datasheet

Description
Specifications
Cases
FAQ
Related Products

Technical Specifications

Input Voltage	24VDC [16V to 28V]
Current Consumption	Standby 0.6mA, Alarm: 4mA
Protocol / Addressing	T&A, Value range from 1 to 254
Smoke Sensitivity	As per stipulated standard
Heat Class Type	A2R
Indicator	Single LED / 360-degree Visual
Material / Colour	ABS / White Glossy finishing
Dimension / Height	Diameter 99.7 mm / 57 mm
Weight	145g (with Base), 90g (without Base)
Operating Temperature	-10°C to +50°C
Humidity	0 to 95% RH, Non-condensing
