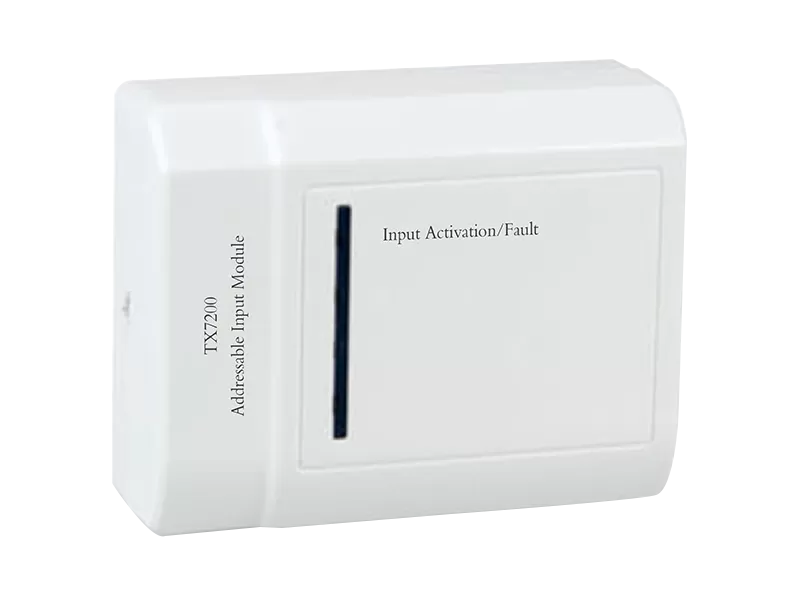

TX7200 Addressable Input Module

Get A Quote

Download Resources

Download Our Product Files

Technical Specifications

Input Voltage	24VDC [16V to 28V]
Current Consumption	Standby: 0.7mA, Alarm: 1.2mA
Protocol / Addressing	T&A, Value range from 1 to 254
Input Relay	Normally Open dry contact
Input Resistance	5.1 Kohms / ¼ W
Indicator Status	Normal: Single blink / Active: Steady / Fault: Double Blink
Material / Colour	ABS / White Glossy finishing
Dimension (L×W×H)	108 × 86 × 38 mm
Weight	155g (with Base), 85g (without Base)
Operating Temperature	-10°C to +50°C
Ingress Protection Rating	IP30
Humidity	0 to 95% RH, Non-condensing
